Afro House Frequency Spectrum vs. Pink Noise
Five Afro House records measured against pink noise, every track gain-matched to -14 LUFS:
- Zakes Bantwini “Osama”
- Zerb “Mwaki”
- Adam Port “Move”
- HUGEL “I Adore You”
- Rampa “Say What”

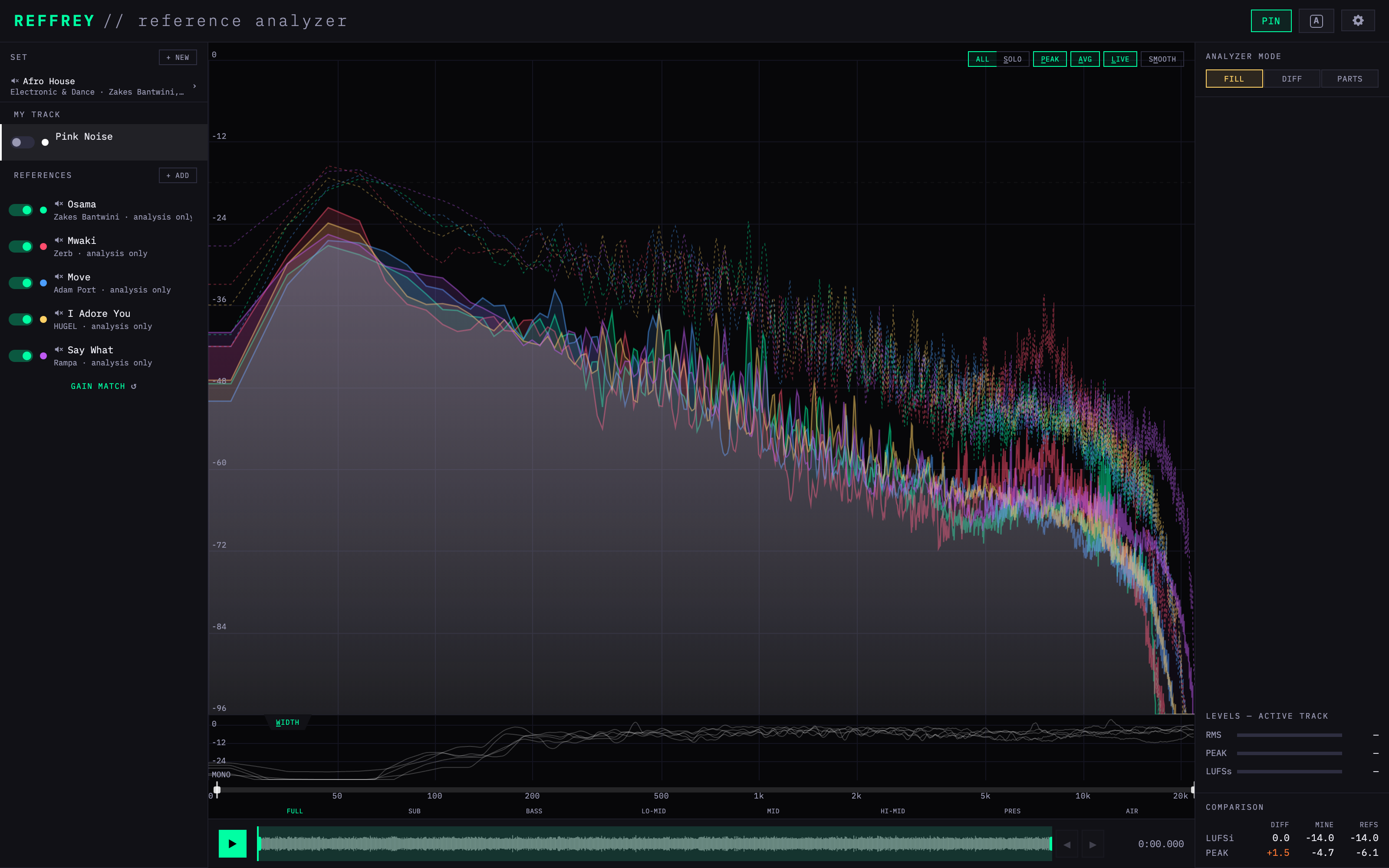

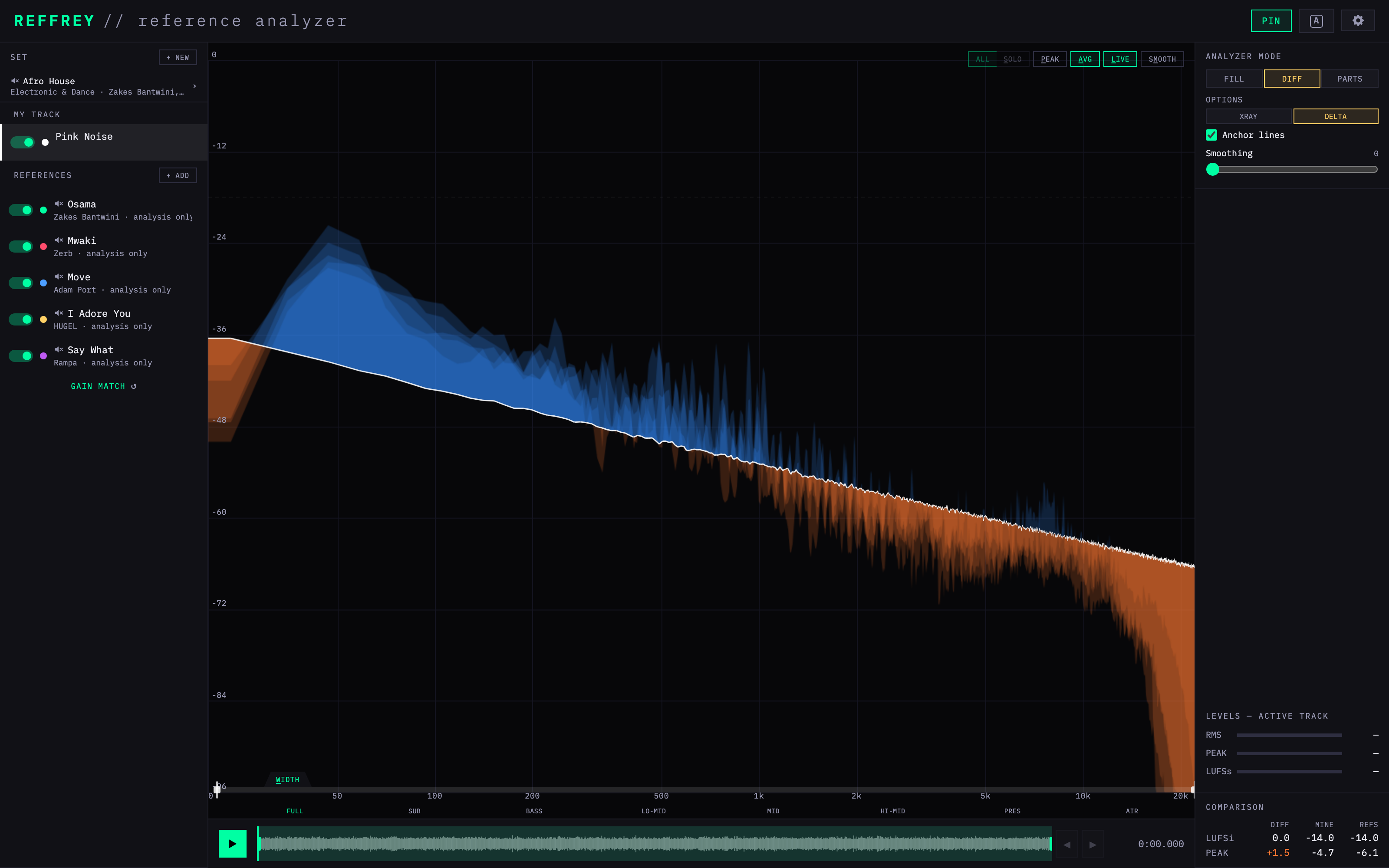

Afro house carries a full, even low end (sub and bass both about 7 dB above pink) with a mono sub. The low mids stay warm (+4 dB), the midrange sits right on pink, and everything above 2 kHz falls 4–6 dB below it. The result is a rounded, bottom-heavy tilt with a comparatively soft top, and the five tracks agree on it closely.
Afro House frequency spectrum vs. other genres
The same pink-noise comparison for two related genres and three very different ones.
Afro House Mixing Guide: instrument frequency ranges and levels

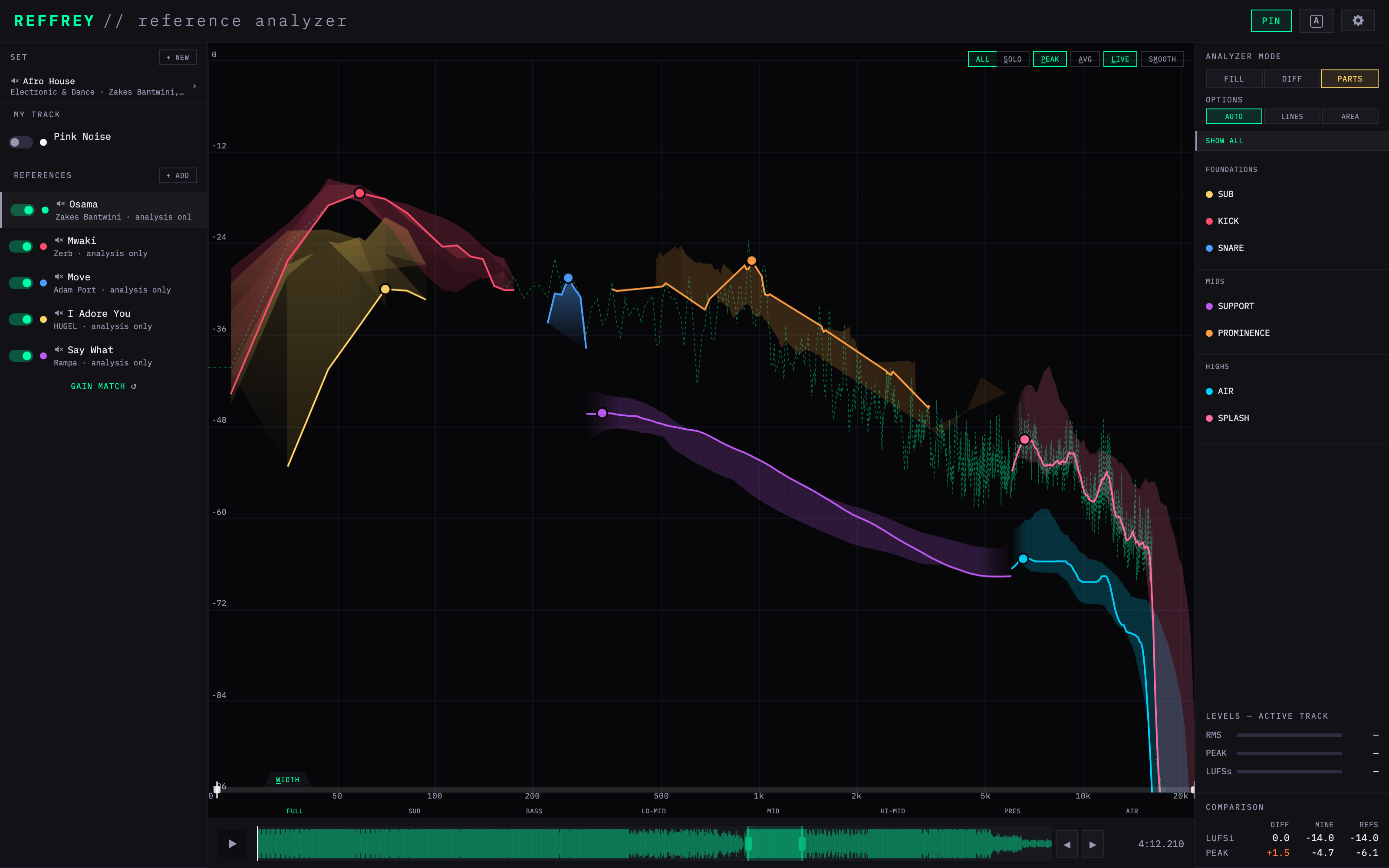

The kick peaks at 41–64 Hz and dominates the parts table, with the sub right on top of it at 41–76 Hz. A snare is outlined in only one track, at 252–264 Hz.

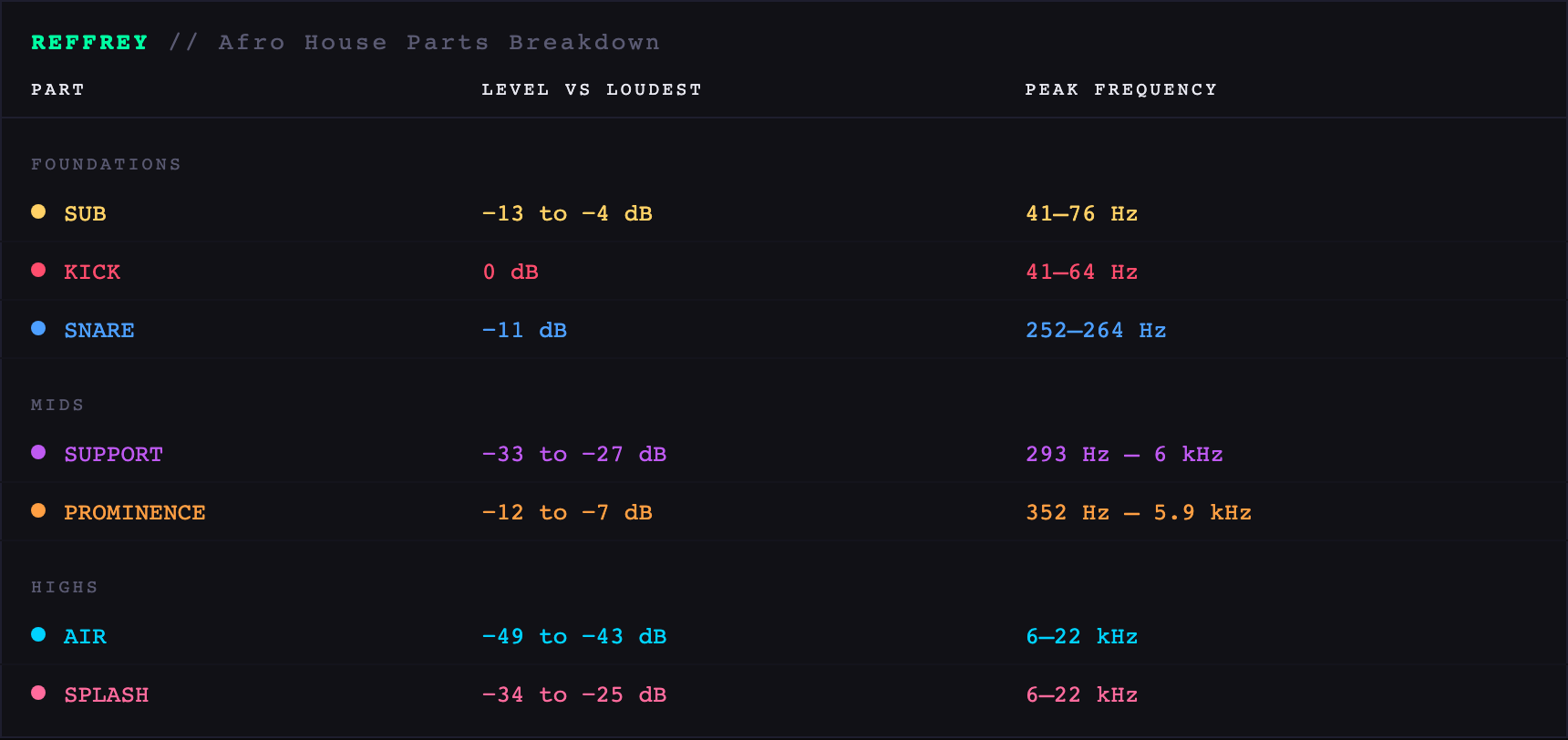

| REFFREY // Afro House Parts Breakdown | ||
|---|---|---|
| Part | Level vs loudest | Peak frequency |
| Foundations | ||
| SUB | −13 to −4 dB | 41–76 Hz |
| KICK | 0 dB | 41–64 Hz |
| SNARE | −11 dB | 252–264 Hz |
| Mids | ||
| SUPPORT | −33 to −27 dB | 293 Hz – 6 kHz |
| PROMINENCE | −12 to −7 dB | 352 Hz – 5.9 kHz |
| Highs | ||
| AIR | −49 to −43 dB | 6–22 kHz |
| SPLASH | −34 to −25 dB | 6–22 kHz |
How loud each part peaks compared with the song’s loudest part (0 dB). Not a fader setting. Each range covers all five tracks, every one gain-matched to -14 LUFS, so the balance compares across tracks and across genres.
Afro House parts vs. other genres
Where Afro House’s sub, kick, snare and mid layers sit next to five other genres.
Afro House Full Reference Stack: Peak, Average, and Stereo Width curves
Average (filled) and peak (dashed) spectra of every reference, with the stereo width strip below. Width is the side-to-mid level per frequency, averaged over the analyzed section: 0 dB means the sides are as loud as the centre, MONO means there is no difference between left and right at all.
Reference tracks and sections analyzed
The 5 Afro House tracks behind this RefMap and the section of each that was analyzed. This is the Afro House set that ships inside REFFREY.
- Zakes BantwiniOsama
- ZerbMwaki
- Adam PortMove
- HUGELI Adore You
- RampaSay What
Captured September 2026 from the REFFREY default set “Afro House”. Analysis only — no audio is included.
Mix like the Pros with REFFREY
This Afro House set ships inside REFFREY. Load it, drop your mix on top, and DIFF and PARTS show exactly where yours differs — in real time from your DAW.
