Melodic Techno Frequency Spectrum vs. Pink Noise
Five Melodic Techno records measured against pink noise, every track gain-matched to -14 LUFS:
- Anyma “Consciousness”
- Argy “Aria”
- Kevin de Vries “Metro”
- John Summit “Shiver”
- RÜFÜS “In the Moment (Adriatique Extended Remix)”

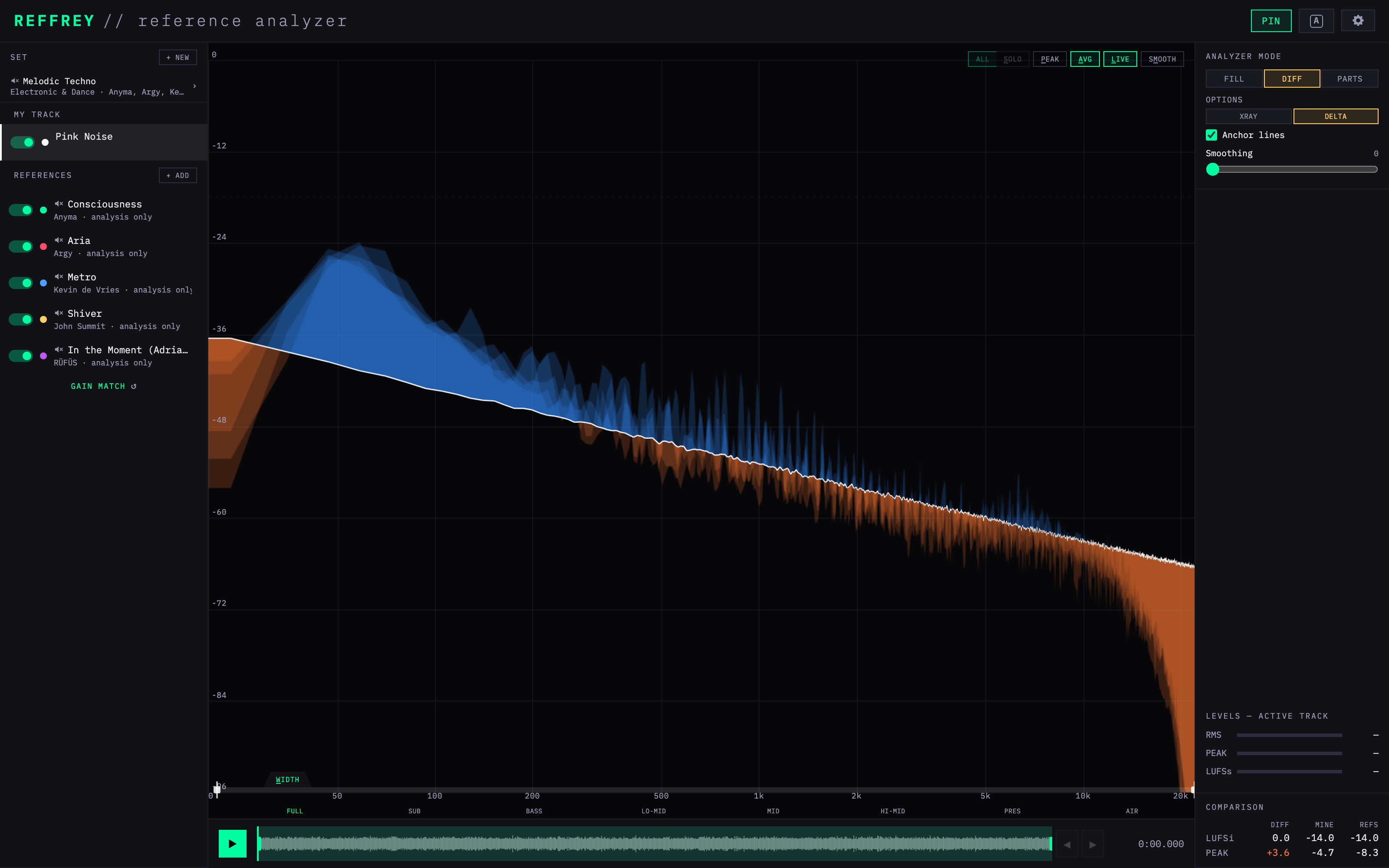

Melodic techno stacks sub and bass together at 5–6 dB over pink, with the kick peaking at 53–76 Hz and the sub kept fairly narrow. Above 250 Hz the curve flattens quickly: the low mids sit slightly above pink, the midrange on it, and the top end slopes to 2–4 dB below. There is no snare outline in this set: the percussion lives in the bass and in the prominent mid layers rather than a discrete snare.
Melodic Techno frequency spectrum vs. other genres
The same pink-noise comparison for two related genres and three very different ones.

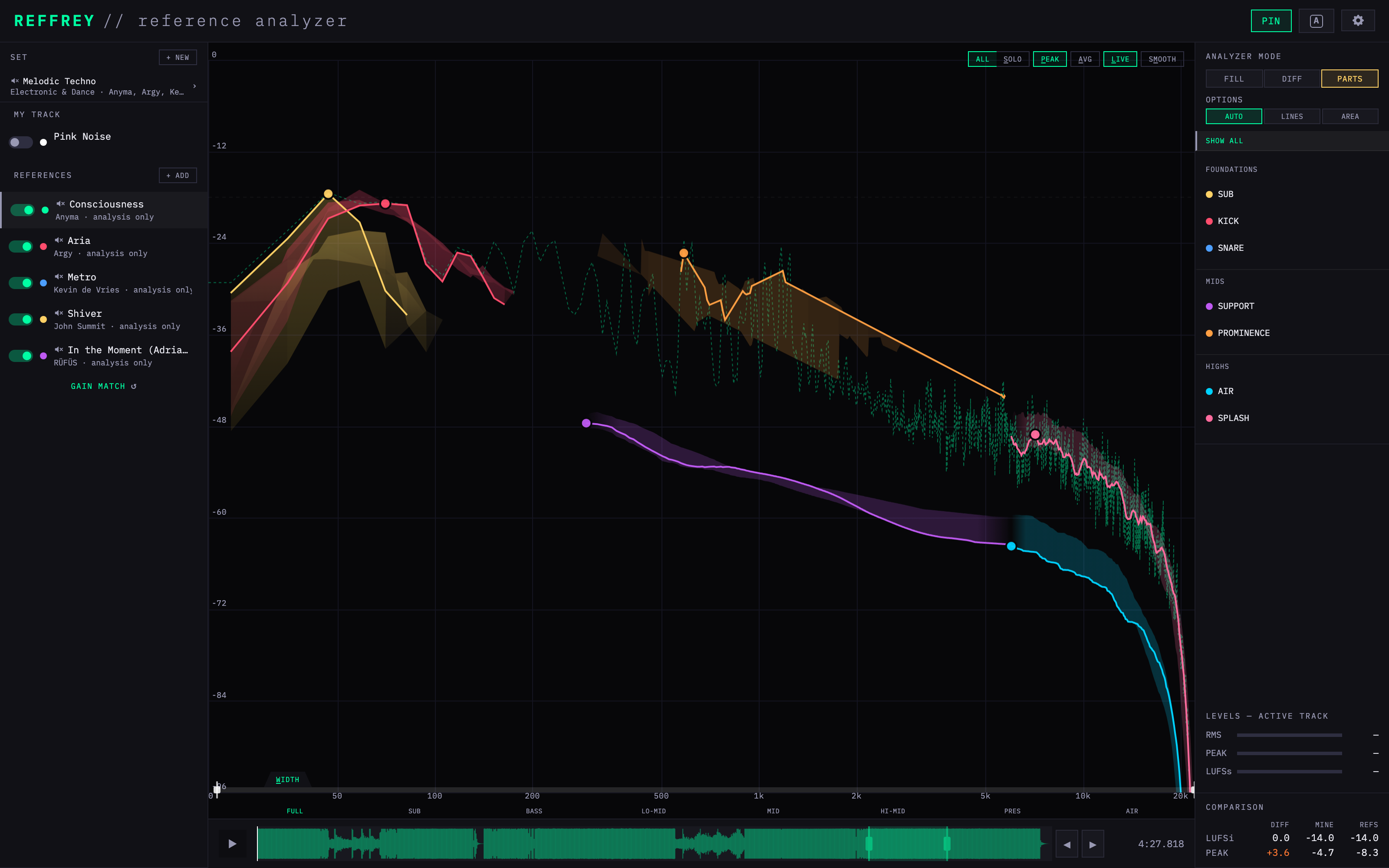

Melodic Techno instrument frequency ranges and levels
Where the individual parts of a Melodic Techno mix sit — sub, kick, snare, the supporting and prominent mid layers, air and splash — as REFFREY's PARTS mode outlines them from the references.
| REFFREY // Melodic Techno Parts Breakdown | ||
|---|---|---|
| Part | Peak position | Peak level |
| Foundations | ||
| SUB | 41–64 Hz | −29 to −18 dB |
| KICK | 53–76 Hz | −19 to −17 dB |
| SNARE | — | — |
| Mids | ||
| SUPPORT | 293 Hz – 6 kHz | −48 to −46 dB |
| PROMINENCE | 316 Hz – 5.8 kHz | −33 to −23 dB |
| Highs | ||
| AIR | 6–22 kHz | −64 to −60 dB |
| SPLASH | 6–22 kHz | −49 to −46 dB |
Levels are peak spectrum levels with every track gain-matched to -14 LUFS, so they compare across tracks and across genres.
Melodic Techno parts vs. other genres
Where Melodic Techno’s sub, kick, snare and mid layers sit next to five other genres.

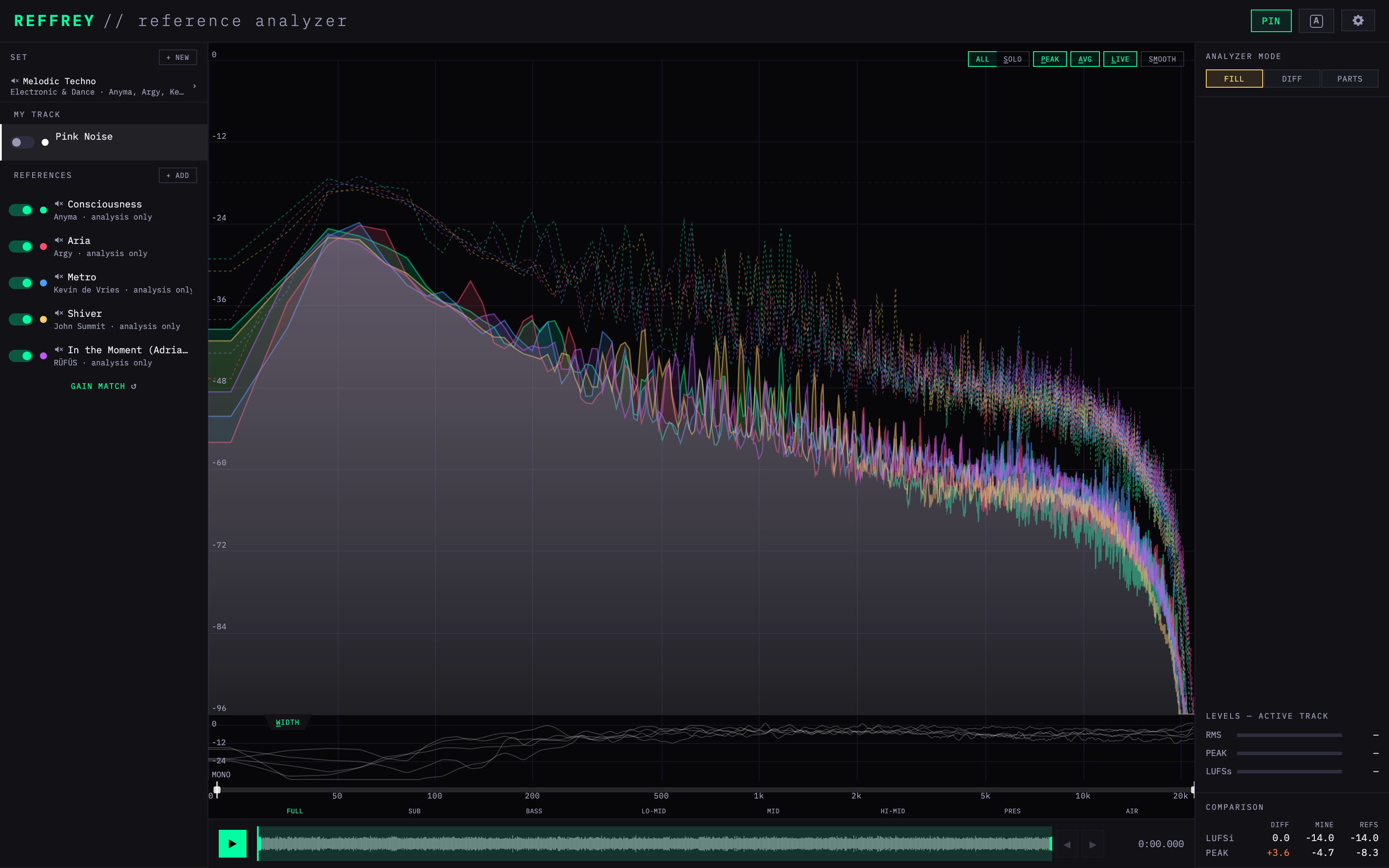

Melodic Techno Full Reference Stack: Peak, Average, and Stereo Width curves
Average (filled) and peak (dashed) spectra of every reference, with the stereo width strip below. Width is the side-to-mid level per frequency, averaged over the analyzed section: 0 dB means the sides are as loud as the centre, MONO means there is no difference between left and right at all.
Reference tracks and sections analyzed
The 5 Melodic Techno tracks behind this RefMap and the section of each that was analyzed. This is the Melodic Techno set that ships inside REFFREY.
- AnymaConsciousness
- ArgyAria
- Kevin de VriesMetro
- John SummitShiver
- RÜFÜSIn the Moment (Adriatique Extended Remix)
Captured September 2026 from the REFFREY default set “Melodic Techno”. Analysis only — no audio is included.
Compare your tracks to your favorite artists with REFFREY
This Melodic Techno set ships inside REFFREY. Load it, drop your mix on top, and DIFF and PARTS show exactly where yours differs — in real time from your DAW.
